Products Description

Ceramic Injection Molding (CIM) is a near-net-shape manufacturing process that combines the efficiency and flexibility of plastic injection molding with the excellent properties of ceramic materials. This technology involves mixing fine ceramic powder with an organic binder to prepare a feedstock with good fluidity. This mixture is then heated to a plasticized state and injected into a mold cavity. After cooling and solidifying into a green body, the part undergoes debinding and sintering processes to obtain high-precision, high-performance ceramic components with complex structures.

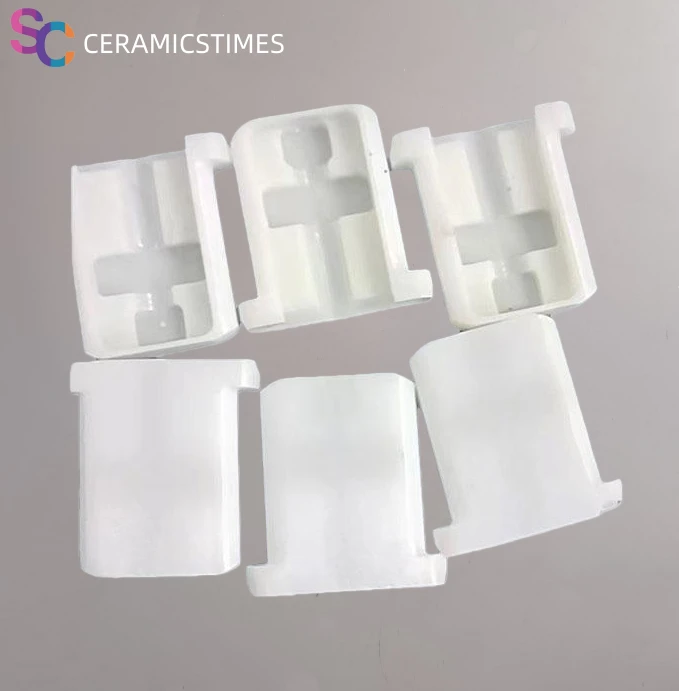

Ceramic Injection Molding

Product name	Injection Molding Ceramics
Material	Aluminum nitride /ALN/AIN
Color	Customized according to the client's requirements
size	Customized according to the client's requirements
Machining accuracy	±0.001mm
Packaging	Carton /Pallet/Wooden case (According to client requirement )
Delivery time	Standard Product-Within 3 days
Items Design	According to the client's drawing or samples
Features	Good quality, low price, Multiple factories, deliver to you based on the one closest to your location
Application	Industrial Ceramics
Certificate	ISO, CE

Ceramics performance parameter

Number	Performance	Unit
			95 Porcelain	97 Porcelain	99 Porcelain	99 Porcelain	995 Porcelain	997 Porcelain	999 Porcelain	Zirconia Toughened Alumina	Alumina Toughened Zirconia	Zirconia
			Al2O3	Al2O3	Al2O3	Al2O3	Al2O3	Al2O3	Al2O3	ZTA	ATZ	Zirconia
1	Density	g/cm3	3.7	3.8~3.85	3.85	3.9	3.9	3.92	3.98	4.0~4.3	≥5.25	6.00~6.10
2	Flexural strength	MPa	304	320	340	450	370	400	550-600	700	≥650	≥1100
3	Fracture toughness	MPa·m1/2	4	4.5	5.6-6	6.2	5.6-6	5.6-6	2.8-4.5	7	≥7	8
4	Dielectric constant	εr(20℃,1MHz)	9.0	9.2	9.5	9.5	9.7	9.8	9.9	9.2	9.2	10.6
5	Hardness	GPa	12.8-15	15	15-16			16.3	16.3-18	13	14.5	15
	Hardness	HRC	73-79	79	79-80			81	81-83	76	78	79
6	Volume resistivity	Ω·cm(20℃)	10 13	10 14	10 14	10 14	10 14	10 14	10 14	10 14	10 14	10 14
7	Elastic modulus	GPa	320	350	330	350	380	380	400	300	280	220
8	Coefficient of thermal expansion	×10-6/k	7.6	7.6	7.6	7.6	7.6	5.4-8.4	6.4-8.9	8.3	8.5	10.2
9	Compressive strength	MPa	1910	2100	2210	2500	2300	2300	2300	2400	2450	2500
10	Abrasions	g/cm2	0.2	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.01
11	Thermal conductivity	W/m×k(20℃)	20	24~27	34	38	35	35	38.9	27	37	27
12	Poisson's ratio	/	0.22	0.22	0.22	0.22	0.22	0.22	0.22	0.25	0.26	0.3
13	Insulation strength	kv/mm	27	28	28	28	28	30	30	30	30	32
14	Temperature	℃	1520-1600	1650	1650	1650	1650	1700	1700	1800	1650	1520

Main Performance Characteristics

1. High Precision and Complex Forming Capability
It can form parts with complex three-dimensional geometries, thin walls, micro holes, and fine features in a single step. The dimensional accuracy is high, typically reaching ±0.3%, with good surface finish.

2. Excellent Material Properties
The finished products possess the inherent properties of ceramic materials, such as high strength, high hardness, wear resistance, corrosion resistance, high-temperature resistance, and good electrical insulation or specific electrical properties.

3. High Efficiency and Consistency
Suitable for mass production, it offers a high degree of automation, good product consistency, and significantly reduces the need for secondary machining.

4. Broad Material Adaptability
Applicable to various engineering ceramic systems such as alumina, zirconia, silicon nitride, and silicon carbide.

Product Application

Ceramic Injection Molding technology is widely used in fields with stringent requirements for part precision, reliability, and special performance.

1. Electronics, Information, and Telecommunications

Fiber Optic Connectors: Such as zirconia ceramic ferrules and sleeves, which require extremely high precision.

Semiconductor Manufacturing: Ceramic wafer boats, insulators, grinding plates, etc.

Electronic Substrates and Packaging: High thermal conductivity aluminum nitride substrates, insulating components.

2. Industry and Machinery

Precision Components: Ceramic nozzles, pump/valve parts, sealing rings, bearing balls and rollers, used in wear-resistant and corrosion-resistant environments.

Cutting Tools: Composite ceramic cutting tool inserts.

3. Medical and Biological

Dental Restoration: Zirconia dental crowns, bridges, implant abutments.

Surgical Instruments: Ceramic scissors, blades with high hardness and good biocompatibility.

Orthopedic Implants: Research and application in artificial joints, etc.

4. Automotive and Aerospace

Turbocharger rotors, engine sensor cores, high-temperature insulation components, etc.

5. Consumer Goods and Tools

Ceramic knife blades, scissors, watch cases, and decorative parts.

6. New Energy and Environmental Protection

Fuel cell separator plates, thermocouple protection tubes, chemical corrosion-resistant parts.
