Aluminum Nitride Ceramic
Your Professional Aluminum Nitride Ceramic Supplier
Superior Ceramics Times Technology Co., Ltd. is a manufacturer specializing in the production of advanced ceramic materials, including nitrides, oxides, carbides, and composite ceramics. Our product portfolio encompasses silicon carbide, aluminum nitride, alumina, ultrapure alumina, yttria, zirconia, high-purity and high-performance boron nitride ceramics, zirconia toughened alumina (ZTA), alumina toughened zirconia (ATZ), silicon nitride, as well as other reinforced, composite, and high-performance ceramic materials.
Advanced Production Technology
The company employs advanced manufacturing technologies, including sintering, molding, grinding, CNC machining, laser drilling, precision grinding, and polishing processes.
Complete Production Equipment
Key production equipment includes sintering furnaces, isostatic presses, grinders, engraving machines, laser cutters, double-sided grinding machines, sand wire cutting devices, and injection molding machines.
Professional R&D Team
Our team consists of experienced experts dedicated to researching advanced ceramic materials. To date, the team has published over 100 academic papers, filed five Chinese invention patents, and obtained more than 20 utility model patents.
Professional Service
The product has technical support from Ph.D. experts and other experts during the research and development stage. The process is rigorous during the production process, and the after-sales service is on call 24 hours a day.
-
![Ceramic Connector]()
Ceramic ConnectorCeramic Connector is a high-performance electronic connector made of advanced ceramic materials, designed for extreme environments and harsh applications. These connectors are known for their...read more -
![Aluminum Nitride Ceramic Chuck]()
Aluminum Nitride Ceramic ChuckIn the high-precision and high-demand field of semiconductor manufacturing, every link is related to the quality and performance of the final product. The emergence of Black Aluminum Nitride...read more -
![Low-temperature co-fired ceramic substrate]()
Low-temperature co-fired ceramic substrateLow-temperature co-fired ceramic substrates are high-density integrated packaging platforms formed by co-firing multiple ceramic green sheets with metal wiring conductors in a single process at...read more -
![Aluminum nitride Ceramic Tube]()
Aluminum nitride Ceramic TubeAn aluminum nitride ceramic tube is a tubular or cylindrical structural component manufactured from high-performance aluminum nitride ceramic material...read more -
![AlN Ceramic Ring]()
AlN Ceramic RingAluminum nitride ceramic Ring is a ring-shaped or tubular structural component manufactured from high-performance aluminum nitride ceramic material...read more -

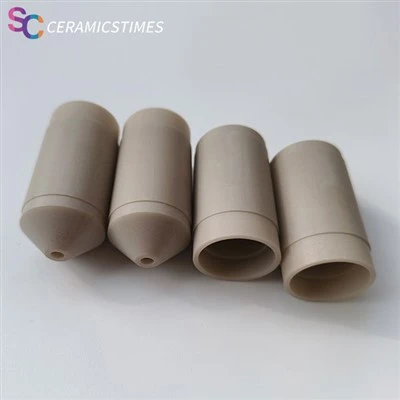

![Aluminum Nitride Ceramic Nozzle]()
Aluminum Nitride Ceramic NozzleThe aluminum nitride ceramic nozzle is a precision fluid control component manufactured from high-performance aluminum nitride ceramic material...read more -
![Aluminum Nitride Ceramic Disc]()
Aluminum Nitride Ceramic DiscAn aluminum nitride ceramic disc is a thin-sheet or disc-shaped functional component manufactured from high-performance aluminum nitride ceramic material. With their exceptionally high thermal...read more -
![Aluminum Nitride Ceramic Crucible]()
Aluminum Nitride Ceramic CrucibleAluminum nitride ceramic crucibles are containers manufactured by sintering high-purity aluminum nitride powder at elevated temperatures...read more -
![Aluminum Nitride Ceramic Chuck]()
Aluminum Nitride Ceramic ChuckThe Aluminum Nitride ceramic chuck, mainly made of aluminum nitride material with special physical and chemical properties and having precise slots, jaws and other parts in its structural design,...read more -
![Aluminum Nitride Ceramic Cover]()
Aluminum Nitride Ceramic CoverAluminum Nitride Ceramic Covers are precision components made of Aluminum Nitride ceramics that offer excellent performance and a wide range of applications in high-tech applications. The high...read more -
![Aluminum Nitride Ceramic Heater]()
Aluminum Nitride Ceramic HeaterAluminum nitride ceramic heaters are high-performance electric heating elements that utilize aluminum nitride ceramic as both an insulating substrate and a heat dissipation carrier...read more -
![Aluminum Nitride Ceramic Bearing]()
Aluminum Nitride Ceramic BearingAluminum nitride ceramic bearings is a rolling bearing manufactured using aluminum nitride ceramic material, where the rolling elements (balls or rollers) and/or inner and outer rings are made...read more
Parameter
|
Color |
Customized according to the client's requirements |
|
Size |
Customized according to the client's requirements |
|
Delivery time |
Standard Product-Within 3 days |
|
Items Design |
According to the client's drawing or samples |
|
Certificate |
ISO, CE |
Types of Aluminum Nitride Ceramic
The aluminum nitride ceramic produced by our company mainly include the following types:
Ceramic Connector
Ceramic Connector is a high-performance electronic connector made of advanced ceramic materials, designed for extreme environments and harsh applications. These connectors are known for their excellent thermal stability, electrical insulation properties, mechanical strength, and chemical resistance.
Low-Temperature Co-Fired Ceramic Substrate
The Low-temperature co-fired ceramic substrate is like a shining star, standing out among many electronic materials and continuously providing powerful impetus for the innovative development of the electronics industry.
AlN Ceramic Tube
Aluminum Nitride(AlN) ceramics are favored due to their excellent properties. As a high-performance ceramic material, Aluminum Nitride ceramic tube shows excellent application potential in the fields of electronics, thermal management and mechanics.
AlN Ceramic Ring
The AlN Ceramic Ring has a stable crystal structure, high strength and hardness, and can withstand large mechanical stress. The AlN Ceramic Ring has good thermal stability, can withstand high temperatures, and will not deform in high-temperature environments.
Advantages of Aluminum Nitride Ceramic
● Superior Thermal Conductivity – Efficient heat dissipation for high-power applications.
● High Electrical Insulation – Ideal for semiconductor components.
● Exceptional Thermal Shock Resistance – Reliable in extreme conditions.
● Compatible Thermal Expansion – Matches well with Silicon wafers.
● Corrosion Resistance to Fluorine-Based Gasses – Ideal for harsh environments.
● Outstanding Plasma Resistance – Suitable for semiconductor and aerospace applications.
Applications of Aluminum Nitride Ceramic
Heat dissipation substrate and electronic device packaging
Ideal for packaging hybrid power switches and microwave vacuum tube housings, as well as substrates for large-scale integrated circuits.
Structural Ceramics
AIN ceramics are heat and erosion resistant and can be used to make crucibles, Al evaporation dishes, semiconductor electrostatic chucks, and other high temperature corrosion resistant parts.
Functional Materials
Aluminum nitride can be used to make high-frequency, high-power devices that can be used at high temperatures or in the presence of radiation, such as high-power electronics and high-density solid-state memory.
Heat exchanger parts
Aluminum nitride ceramics with high thermal conductivity, low coefficient of thermal expansion, excellent thermal conductivity and thermal shock resistance can be used as ideal heat-resistant impulse and heat exchanger materials.
Inert heat-resistant materials
AlN as a heat-resistant material can be used as crucibles, protective tubes, casting molds and so on. Aluminum nitride can be in 2000 ℃ non-oxygenated atmosphere, still has a stable performance, is an excellent high-temperature refractory materials, resistance to molten metal erosion ability.
Filler material
Aluminum nitride has excellent electrical insulation, high thermal conductivity, good dielectric properties, good compatibility with polymer materials, is an excellent additive for polymer materials for electronic products, can be used for TIM filler, FCCL thermal conductivity dielectric layer filler.
Performance Characteristics of Aluminum Nitride Ceramic
|
Performance Category |
Performance Indicators |
Parameter Value |
Unit |
|
Thermal Properties |
Thermal Conductivity(259C) |
170-321 |
W/(mK) |
|
Thermal Expansion Coefficient (25- 400°C) |
4.5 |
- |
|
|
Maximum Operating Temperature (Inert gas) |
2200 |
°C |
|
|
Oxidation Onset Temperature (air) |
700 |
°C |
|
|
Electrical Properties |
Volume Resistivity (25°C) |
>10 |
cm |
|
Dielectric Constant Speed (1MHz) |
8.5-9.0 |
- |
|
|
Dielectric Loss (1MHz) |
0.0005 |
- |
|
|
Breakdown voltage Strength |
15-20 |
kV/mm |
|
|
Mechanical Properties |
Density |
3.26 |
g/cm3 |
|
Vickers Hardness |
12 |
GPa |
|
|
Bending Strength |
350-420 |
MPa |
|
|
Elastic Modulus |
320 |
GPa |
|
|
Poisson's Ratio |
0.22 |
- |
|
|
Compressive Strength |
3000 |
MPa |
Customization Process
Packaging and Shipping
|
Packaging |
The package of our products usually includes bubble wrap, carton, pallet and wooden case, etc. Also it can be designed according to your demands. |
|
Shipping |
If the quantity is not big or you need it urgently, we advise you to ship them by Express such as DHL, FEDEX, UPS, TNT etc. If your quantity is large, we advise you to use Sea shipping or Air shipping. |
Our Factory
Superior Ceramics Times Technology Co., Ltd. was established in 2005 and has several production plants in Taizhou, Shaoxing, etc. We also have a registered company in the United States, located at 10 ROBIN, IRVINE, CA 92604.
Our Certificates
FAQ
As one of the most professional aluminum nitride ceramic manufacturers and suppliers, we're featured by quality products and good price. Please rest assured to buy high-grade aluminum nitride ceramic from our factory.
aluminum nitride ain special shaped parts, aluminum nitride ceramic
