Products Description

Aluminum nitride, known by its chemical name AlN or nitride of aluminum (nitruro de aluminio, nitrure d'aluminium), is an advanced technical ceramic material. Often referred to as AIN ceramic, aluminium nitride ceramic, or simply AlN ceramic, it is known for its excellent thermal conductivity, high electrical insulation, and remarkable mechanical properties. It exhibits a hexagonal wurtzite crystal structure, contributing to its unique combination of physical and chemical characteristics, making AlN material a compound of significant interest.

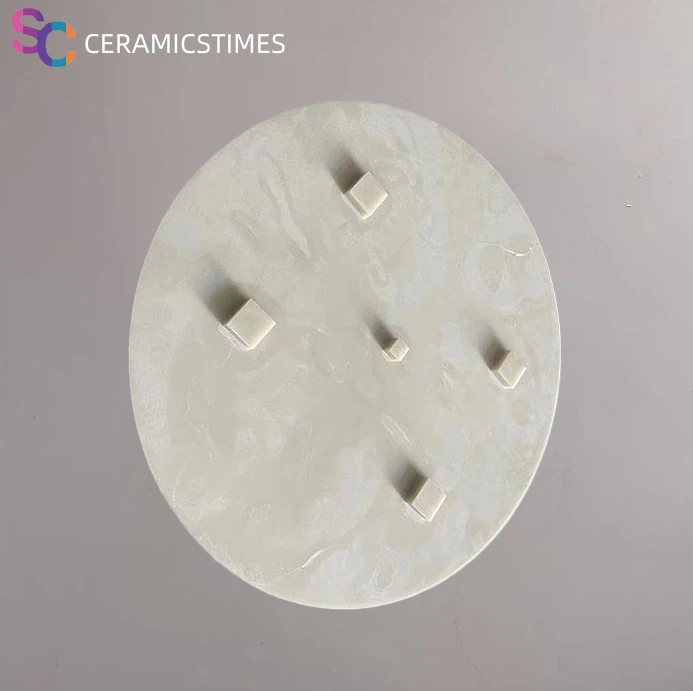

Aluminum Nitride Ceramic Structure

Product name	Aluminum nitride ceramic structure
Color	Customized according to the client's requirements
size	Customized according to the client's requirements
Packaging	Carton /Pallet/Wooden case (According to client requirement )
Delivery time	Standard Product-Within 3 days
Items Design	According to the client's drawing or samples
Features	Good quality, low price, Multiple factories, deliver to you based on the one closest to your location
Application	Industrial Ceramics
Certificate	ISO, CE

Ceramics performance parameter

Number	Performance	Unit	Aluminum Nitride
			Aluminum Nitride
			JC-AN-210	JC-AN-170
1	Density	g/cm3	3.32~3.34	3.31~3.33
2	Flexural strength	MPa	340~360	400~420
3	Fracture toughness	MPa·m1/2	3.35	3.35
4	Dielectric constant	εr(20℃,1MHz)	8.8~9.0	8.7~8.9
5	Hardness	GPa	12-16
	Hardness	HRC	75-80
6	Volume resistivity	Ω·cm(20℃)	10 10	10 10
7	Elastic modulus	GPa	310	320
8	Coefficient of thermal expansion	×10-6/k	4.8~5.0	4.5~4.7
9	Compressive strength	MPa	2100	2000
10	Abrasions	g/cm2	0.01	0.01
11	Thermal conductivity	W/m×k(20℃)	200~220	160~180
12	Poisson's ratio	/	0.24	0.24
13	Insulation strength	kv/mm	26~28	30~32
14	Temperature	℃	2500	2500

Product Performance

1. High thermal conductivity

Aluminum nitride ceramics have very high thermal conductivity, with a theoretical value of up to 320W/m·K and an actual value of 170W/m·K to 240/m·K, which is much higher than traditional alumina ceramics. This makes aluminum nitride ceramics an ideal heat dissipation material, suitable for electronic devices, LED lighting, laser equipment and other fields, effectively improving the working efficiency and life of the equipment.

2. Excellent electrical insulation

Aluminum nitride ceramics have good electrical insulation, low dielectric constant, low dielectric loss, and remain stable at high frequencies. These characteristics make it a preferred material in high-frequency, high-power electronic devices, such as high-frequency circuit substrates, power module packaging, etc.

3. Good thermal expansion matching

The thermal expansion coefficient of aluminum nitride ceramics is about 4.5×10^-6/K, which is very close to semiconductor materials such as silicon (Si) and gallium arsenide (GaAs). This makes aluminum nitride ceramics an ideal substrate material for semiconductor devices, helping to reduce thermal stress and improve the reliability and stability of devices.

Products Applications

Aluminum nitride ceramics are widely used in electronics and high-temperature industries. Key products include AlN wafers, AlN substrates (aluminium nitride substrates), and AlN sheets (aluminium nitride sheet, AlN plate). In microelectronics, they serve as heat sinks (ALN heat sink), polished substrates (AIN polished substrate, ALN polished substrate), and insulating layers for integrated circuits and LED packages due to their high thermal conductivity. High thermal conductivity substrates (AIN high thermal conductivity substrate, ALN high thermal conductivity substrate) are critical for power electronics and high-power semiconductor modules.

The material is extensively used in thermal management applications such as AlN heaters (aluminum nitride ceramic heaters), aluminum nitride heater plates, and aluminum nitride thermal discs. Its chemical stability makes it ideal for use as crucibles (AlN crucible), tubes, and plates for handling molten metals. Aluminum nitride structural components and parts are found in aerospace, automotive sensors, and as protective components.

Furthermore, AlN is used in specialized applications like microporous ceramic suction cups for precision handling, acoustic wave devices, and microwave components. The ability to fabricate custom aluminum nitride components-such as custom substrates, crucibles, tubes, plates, and parts-allows for tailored solutions across advanced industries. Leading aluminum nitride manufacturers and suppliers, such as Maruwa, provide these high-performance materials, with the aluminum nitride price reflecting its advanced properties and manufacturing precision.
